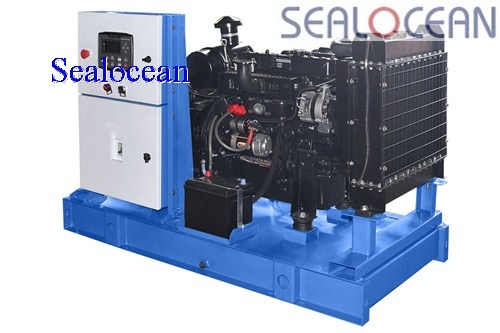

Product name : CHINA FACTORY DIESEL GENERATOR WITH QUANCHAI ENGINE, QUANCHAI DIESEL GENERATORS FROM CHINA FACTORY,CHINA FACTORY MANUFACTURERS OF DIESEL GENERATORS, QUANCHAI CHINESE DIESEL GENERATOR SET FACTORY
Product No. : 2020518145840

Details:
  Technical Speicifications:

Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V

Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V

Power Factor 0.8(lagging)

Protection Standard: IP23

Model of Connection: 3 phase 4 lines

Egnine charactors: Vertical type, 4-stroke, water cooled

voltage regulation: ±1.0% with 4% engine governing

Insulation Grade: H



Genset Features:

1. Brand new famous QUANCHAI water-cooled diesel engine

2. Mounted intelligent European Brand ComAp AMF20 control panel with Auto Starting System

Protection Function: High temperature, Over speed, Low Speed, Low Oil Pressure, Over voltage, Over current, Undervoltage.

3. Synchronous A.C. Alternator Self Excitation System, with AVR delivering non fluctuating power

4. Extemal recessed emergency stop button for extra safety.

5. 50℃ Copper-Wire Radiator with engine driven fan mounted on skid

6. Good quality MCCB breaker mounted

7. Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable

8. 12-24V DC electric start system

9. Free maintenance lead-acid starting battery and its cables

10. Weatherproof and soundproof enclosure high grade steel protected by powder coat painting

11. Industrial primary silencer with flexible connection elbows

11. Fuel tank for at least 8~10 hours continuous running under full load, with fuel gauge integrated on base frame

13. Test report, Set of drawings and Operation&Maintenance English manuals

14. Standard tool kits

15- ATS: Automatic transfer switch bewteen mains power and generating power
Δ TESTING ITEMS
we provides a full line of brand new and high quality products.
Each and every unit is strictly factory tested before shipment.
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.

Δ OPTIONAL SUPPLY
1) Weatherproof canopy / Soundproof canopy / Trailer-mounted
2) Engine / Alternator Pre-heaters
3) Auto load sharing & synchronization panel
4) Build-in ATS (Auto start & stop Main Failure (AMF)
5) Large 12/24 hours fuel tank
6) Power output sockets

Frequency: 50HZ;Rotating speed: 1500Rpm;
Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Copy Stamford Type
PJ-QC9 7.2 9 12.96 QC380D PJ164B
PJ-QC10 8 10 14.4 QC385D PJ164B
PJ-QC14 10.8 13.5 19.5 QC480D PJ164C
PJ-QC16 12.8 16 23 N485D PJ164D
PJ-QC20 16 20 28.9 QC490D PJ184E
PJ-QC25 20 25 36 QC498D PJ184F
PJ-QC31 25 31 45 QC4102D PJ184G
PJ-QC38 30 38 54 QC4105D PJ184H
Frequency: 60HZ;Rotating speed: 1800Rpm;
Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Copy Stamford Type
PJ-QC13 10 13 18 QC385D PJ164B
PJ-QC17 14 17 25.3 QC480D PJ164C
PJ-QC20 16 20 28.9 N485D PJ164D
PJ-QC25 20 25 36 QC490D PJ184E
PJ-QC30 24 30 43.3 QC498D PJ184E
PJ-QC40 32 40 57.7 QC4102D PJ184G

Δ GENERAL GENSET FEATURES
9kVA-250kVA Silent /Super-Silent /Open Type Home/Industrial Use Power Electric Diesel Engine Generator Powered by Cummins/Ricardo/Doosan/Deutz/Yuchai/Sdec
9kVA-250kVA Silent /Super-Silent /Open Type Home/Industrial Use Power Electric Diesel Engine Generator Powered by Cummins/Ricardo/Doosan/Deutz/Yuchai/Sdec
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Hensing will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Hensing provides cost spare parts maintenance of gensets
