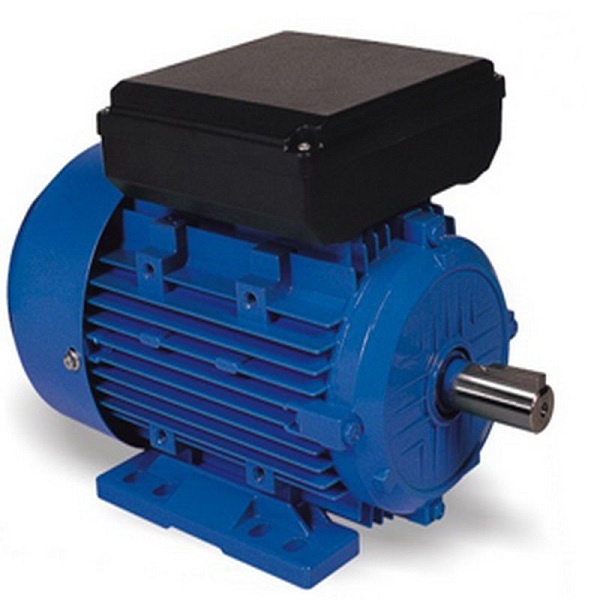

MY Series Single-phase Capacitor Running Asynchronous Motors
Detailed
THE M RANGE OF MOTORS ARE MADE ACCORDING
TO IEC STANDARDS, AND INCORPORATE THE
FOLLOWING SERIES:
MY series single phase capacitor-run induction motors
These are superior motors that can be used in a multitude of
applications in the commercial, industrial, building service,
water treatment and agricultural fields where superior quality
and reliability are demanded.
MOTOR FEATURES
- Utilise IP55 enclosures,IP54 on request
- Multiple feet locations
- Aluminium frame,end shields and base
- High strength cable gland
- Superior paint finish
- Motors made to heavy duty service factors
- Can be made with stainless steel shaft
- Motors made for continuos S1 duty
- Utilise Vacuum impregnated Class F insulation
- High performance and effciency
CUSTOMER BENEFITS
- Water dust and vermin resistant
- Quiet operation
- Electricity saving
- Easy intallation
- Corrosion resistant
- Safety and reliable
- Superior life
- Reliable in country,city or factory environments
Type | Rated Output | Speed | Voltage | Frequency | Efficiency | Power factor | In | Is | Ts | Nosie |
kW | r/min | V | Hz | % | Cos Φ | A | A | Tn | Lw dB(A) | |
MY561-2 | 0.09 | 2800 | 220 | 50 | 56 | 0.92 | 0.8 | 2.5 | 0.5 | 70 |
MY562-2 | 0.12 | 2800 | 220 | 50 | 60 | 0.92 | 0.99 | 3.5 | 0.5 | 70 |
MY631-2 | 0.18 | 2800 | 220 | 50 | 65 | 0.92 | 1.4 | 5 | 0.4 | 70 |
MY632-2 | 0.25 | 2800 | 220 | 50 | 66 | 0.92 | 1.9 | 7 | 0.4 | 70 |
MY711-2 | 0.37 | 2800 | 220 | 50 | 67 | 0.92 | 2.7 | 10 | 0.35 | 75 |
MY712-2 | 0.55 | 2800 | 220 | 50 | 70 | 0.92 | 3.9 | 15 | 0.35 | 75 |
MY801-2 | 0.75 | 2800 | 220 | 50 | 72 | 0.92 | 5.2 | 20 | 0.33 | 75 |
MY802-2 | 1.1 | 2800 | 220 | 50 | 75 | 0.95 | 7.1 | 30 | 0.33 | 78 |
MY90S-2 | 1.5 | 2800 | 220 | 50 | 76 | 0.95 | 9.5 | 45 | 0.3 | 83 |
MY90L-2 | 2.2 | 2800 | 220 | 50 | 77 | 0.95 | 13.7 | 65 | 0.3 | 83 |
MY561-4 | 0.06 | 1400 | 220 | 50 | 50 | 0.9 | 0.61 | 2 | 0.45 | 65 |
MY562-4 | 0.09 | 1400 | 220 | 50 | 52 | 0.9 | 0.86 | 2.5 | 0.45 | 65 |
MY631-4 | 0.12 | 1400 | 220 | 50 | 57 | 0.9 | 1.1 | 3.5 | 0.4 | 65 |
MY632-4 | 0.18 | 1400 | 220 | 50 | 59 | 0.9 | 1.5 | 5 | 0.4 | 65 |
MY711-4 | 0.25 | 1400 | 220 | 50 | 61 | 0.92 | 2 | 7 | 0.35 | 65 |
MY712-4 | 0.37 | 1400 | 220 | 50 | 62 | 0.92 | 3 | 10 | 0.35 | 70 |
MY801-4 | 0.55 | 1400 | 220 | 50 | 64 | 0.92 | 4.3 | 15 | 0.35 | 70 |
MY802-4 | 0.75 | 1400 | 220 | 50 | 68 | 0.92 | 5.5 | 20 | 0.32 | 70 |
MY90S-4 | 1.1 | 1400 | 220 | 50 | 71 | 0.95 | 7.5 | 30 | 0.32 | 73 |
MY90L-4 | 1.5 | 1400 | 220 | 50 | 73 | 0.95 | 9.9 | 45 | 0.3 | 78 |
