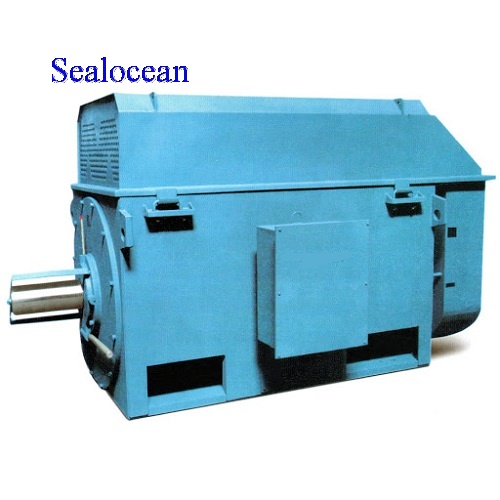

Product name : CHINA FACTORY YKK560 10kv 450/500/560/630kw 742r/Min 3 Phase High voltage Electric Motor, 6kv 1400kw 1600kw 1800kw 2981r/Min 3 Phase High voltage Electric Motor,Fábrica de China YKK560
Product No. : 2020425203928
←[Previous Product]              [Next Product]→
Details:
YKK Series High-voltage Three-phase Asynchronous Electric Motors

Comparison of different series High Voltage motors
No.
Squirrel-cage motor
Y
YKK
YKS
Y2
Slip-ring motor
YR
YRKK
YRKS
/
1
Structure
Box-type construction, made up of steel plates welded with each other
Compact struction
2
Cooling method
IC01 or (IC11, IC21, IC31)
IC611 or IC616
IC81W
IC411
3
Natural ventilation, with top mounted protection cover
With top mounted air-air cooler
With top mounted air-water cooler

4
Protection type
IP23
IP44 or IP54
IP44 or IP54
IP54
5
Insulation
F
6
Mounting arrangement
IMB3
7
Voltage available
3kv, 3.3kv;     6kv, 6.6kv;     10kv, 11kv
8
Frequency available
50Hz , 60Hz
Explanation of type designation




1PRODUCT INTRODUCTION OF YKK ELECTRICMOTOR
YKK series are medium-sized high-voltage three-phase asynchronous motor, are news products that our company made on the basis of digesting and absorbing similar design and manufacture technique in the world, we made a lot of improvements and innovations, the performance of the product is more optimized, the structure is more reasonable and reliable. YKK motors’s design, manufacture, testing are in line with IEC standards.
YKK motors frame base is welded with steel plate into box structures, and at the same time, I strengthened the hardness of 45º position of frame. At the top of the electric-motors, there can be choosed air-air or water-air cooler for heat exchange, easy disassembly and maintenance. The stator coil adopts copper wire with F grade insulation, heat resistance and pressure resistance are better. In production, multiple turn to turn impulse voltage tests and to-ground high voltage tests are performed, the stator is VPI treated with advanced German vacuum pressure impregnation solvent-free varnish equipment and process. Therefore, the motor has excellent and reliable insulation property, strong damp-proof property .Cold-rolled silicon steel sheet is adopted for iron core, unit volume loss is significantly reduced, the external press fitting structure of sator iron facilitates inserting coil and entire dip coating. Rotor has shaft collar structure,strengthening the rigidity of the shaft, increasing the area for air inletting of the rotor, cage rotor is adopted by cast aluminum technology.
2PRODUCT USE OF YKK ELECTRIC MOTOR
YKK series electric motor has high efficiency, low noise, little vibration, reliable operation, easy installation and maintenance, etc. YKK electrical motor can be used to drive various kinds of general machinery, such as: fan, water pump, compressor, crusher, cutting machine, transport machinery, etc., Available for mining, machinery industry, petrochemical industry, power generation and other industrial enterprises.
If the electric motor is used to drive blower, coal mill, rolling mill or winding machine, the customer should specify the use and technical requirements in order, we will use a special design to protect the reliable operation of the electric motor.
3. TECHNICAL FEATURES OF YKK ELECTRIC MOTOR
1. Execution standard: IEC
2. Frame size: H355~H630
3. Rated power: 220KW~2500KW
4. Voltage: 6000V, 3000V, 10000V
5. Frequency: 50Hz, 60Hz
6. Pole: 2P, 4P, 6P, 8P, 10P, 12P
7. Operation mode: S1 (continuous running)
8. Enclosed protect class: IP55, IP44, IP23
9. Insulation class: F
10. Cooling method: IC04,IC411,IC611
11. Mounting method: IMB3
12. Power supply conditions: voltage variable ±5%, frequency variable ±2%.
13. Ambient conditions: Altitude lower than 1000m; Ambient temperature -20~40Cº; Humidity less than 90%
4Customer Can Choose
1. Mouting method: default is horizontal, can choose vertical
2. Cooling method: default is air-air, can choose water-air
3. Main conduit box location: default is right side(view from the drive shaft end), can choose left of motor
4. Can choose stator winding thermometer PTC
5. Can choose bearing thermometer Pt100
6. Can choose moistureproof heater (space heater) .
5ORDERING INSTRUCTION
When customer inquiry or order the motors, please specify the electric motor model, rated power, voltage, frequency, synchronous speed, rotation direction(view from the drive shaft end), mounting method, cooling method, protection grade (IP), terminal box location, load device name or use.
If customers have special request, such as other power, voltage, frequency, mounting size, shaft extension size, high locked-rotor torque, elevation, special ambient and other, please specify.
other, please specify
6KV, 50Hz, IP44/IP54, IC611/IC616
Type Rated Synchronous Full Load Breakdown Torque Locked Rotor Torque Locked Rotor Current Sound Power
Power speed Current Eff. Power Rated Torque Rated Torque Rated Current dB(A)
Factor
kW r/min A % cosΦ
YKK355 1-4 185 1500 22.6 92.8 0.85 1.8 0.8 6.5 106
YKK355 2-4 200 24.4 92.9
YKK355 3-4 220 1500 26.8 93 0.86 1.8 0.8 6.5 106
YKK355 4-4 250 30.4 93.1 108
YKK355 5-6 185 1000 23.5 92.4 0.82 1.8 0.8 6 102
YKK355 6-6 200 25.3 92.6
YKK400 2-4 280 1500 33.6 93.2 0.86 1.8 0.8 6.5 108
YKK400 3-4 315 37.8 93.3
YKK400 4-4 355 1500 42.5 93.5 0.86 1.8 0.8 6.5 108
YKK400 5-4 400 47.8 93.7
YKK400 6-4 450 53.6 93.9
YKK400 1-6 185 1000 23.5 92.4 0.82 1.8 0.8 6 102
YKK400 2-6 200 25.3 92.6
YKK400 3-6 220 1000 27.8 92.8 0.82 1.8 0.8 6 102
YKK400 4-6 250 31.5 93 105
YKK400 5-6 280 1000 35.2 93.3 0.82 1.8 0.8 6 105
YKK400 6-6 315 39.5 93.5
YKK400 4-8 185 750 24.7 92.5 0.78 1.8 0.8 5.5 99
YKK400 5-8 200 26.6 92.7
YKK400 6-8 220 29.2 92.9
YKK450 2-4 500 1500 59.5 94 0.86 1.8 0.8 6.5 108
YKK450 3-4 560 66.5 94.2 111
YKK450 4-4 630 1500 74.7 94.4 0.86 1.8 0.8 6.5 111
YKK450 5-4 710 84 94.6
YKK450 2-6 355 1000 43.9 93.7 0.83 1.8 0.8 6 105
YKK450 3-6 400 49.4 93.8
YKK450 4-6 450 1000 55.4 94.1 0.83 1.8 0.8 6 105
YKK450 5-6 500 61.5 94.3
YKK450 2-8 250 750 32.7 93 0.79 1.8 0.8 5.5 102
YKK450 3-8 280 36.6 93.2
YKK450 4-8 315 750 41.1 93.4 0.79 1.8 0.8 5.5 102
YKK450 5-8 355 46.2 93.5
YKK450 1-10 185 600 25.9 91.7 0.75 1.8 0.8 5.5 99
YKK450 2-10 200 27.9 91.9
YKK450 3-10 220 30.6 92.1
YKK450 4-10 250 600 34.8 92.3 0.75 1.8 0.8 5.5 102
YKK450 5-10 280 38.8 92.5
YKK450 4-12 185 500 27.7 91.8 0.7 1.8 0.8 5.5 99
YKK450 5-12 200 29.9 92
6KV, 50Hz, IP44/IP54, IC611/IC616
Type Rated Synchronous Full Load Breakdown Torque Locked Rotor Torque Locked Rotor Current Sound Power
Power speed Current Eff. Power Rated Torque Rated Torque Rated Current dB(A)
Factor
kW r/min A % cosΦ
YKK500 1-4 800 1500 93.9 94.8 0.87 1.8 0.7 6.5 111
YKK500 2-4 900 105 94.9
YKK500 3-4 1000 1500 116 95 0.87 1.8 0.7 6.5 111
YKK500 4-4 1120 130 95.1 113
YKK500 1-6 560 1000 68 94.4 0.84 1.8 0.7 6 108
YKK500 2-6 630 76.4 94.5
YKK500 3-6 710 1000 85.8 94.8 0.84 1.8 0.7 6 108
YKK500 4-6 800 96.6 94.9
YKK500 1-8 400 750 51.3 93.7 0.8 1.8 0.8 5.5 102
YKK500 2-8 450 57.7 93.8
YKK500 3-8 500 750 63.8 94.2 0.8 1.8 0.8 5.5 102
YKK500 4-8 560 71.4 94.4 105
YKK500 1-10 315 600 43 92.8 0.76 1.8 0.8 5.5 102
YKK500 2-10 355 48.3 93
YKK500 3-10 400 600 54.3 93.3 0.76 1.8 0.8 5.5 102
YKK500 4-10 450 61 93.4
YKK500 1-12 220 500 31.9 92.2 0.72 1.8 0.8 5.5 99
YKK500 2-12 250 36.1 92.5 102
YKK500 3-12 280 500 40.4 92.7 0.72 1.8 0.8 5.5 102
YKK500 4-12 315 45.4 92.8
YKK560 1-4 1250 1500 144 95.2 0.88 1.8 0.6 6.5 113
YKK560 2-4 1400 161 95.3
YKK560 3-4 1600 183 95.4
YKK560 1-6 900 1000 107 95 0.85 1.8 0.7 6.5 108
YKK560 2-6 1000 119 95.1
YKK560 3-6 1120 133 95.2
YKK560 1-8 630 750 78.2 94.5 0.82 1.8 0.7 6 110
YKK560 2-8 710 80 94.6 105
YKK560 3-8 800 99.1 94.7
YKK560 1-10 500 600 65.9 93.6 0.78 1.8 0.7 6 102
YKK560 2-10 560 600 73.7 93.7 0.8 1.8 0.7 6 105
YKK560 3-10 630 82.8 93.8
YKK560 4-10 710 93.1 94
YKK560 1-12 355 500 49.6 93 0.74 1.8 0.7 6 102
YKK560 2-12 400 500 55.7 93.3 0.75 1.8 0.7 6 102
YKK560 3-12 450 62.6 93.4
YKK560 4-12 500 69.4 93.7
Type Rated Synchronous Full Load Breakdown Torque Locked Rotor Torque Locked Rotor Current Sound Power
Power speed Current Eff. Power Rated Torque Rated Torque Rated Current dB(A)
Factor
kW r/min A % cosΦ
YKK630 1-4 1800 1500 206 95.5 0.88 1.8 0.6 6.5 113
YKK630 2-4 2000 229 95.6
YKK630 3-4 2240 256 95.7 115
YKK630 1-6 1250 1000 147 95.3 0.86 1.8 0.7 6.5 110
YKK630 2-6 1400 164 95.4
YKK630 3-6 1600 187 95.5
YKK630 1-8 900 750 109 94.8 0.86 1.8 0.7 6 105
YKK630 2-8 1000 121 94.9
YKK630 3-8 1120 750 135 95 0.84 1.8 0.7 6 107
YKK630 4-8 1250 151 95.1
YKK630 1-10 800 600 102 94.2 0.8 1.8 0.7 6 105
YKK630 2-10 900 115 94.3
YKK630 3-10 1000 600 127 94.4 0.8 1.8 0.7 6 105
YKK630 4-10 1120 142 94.6 107
YKK630 1-12 560 500 75.6 93.8 0.76 1.8 0.7 6 105
YKK630 2-12 630 84.9 93.9
YKK630 3-12 710 500 95.6 94 0.76 1.8 0.7 6 105
YKK630 4-12 800 108 94.2
10KV, 50Hz, IP44/IP54, IC611/IC616
Type Rated Synchronous Full Load Breakdown Torque Locked Rotor Torque Locked Rotor Current Sound Power
Power speed Rated Torque Rated Torque Rated Current dB(A)
kW r/min Current Eff. Power
A % Factor
cosΦ
YKK450S1-4 185 1500 13.7 92 0.85 1.8 0.7 7 104
YKK450S2-4 200 14.7 92.3
YKK450S3-4 220 1500 16.2 92.4 0.85 1.8 0.7 7 104
YKK450S4-4 250 18.3 92.6
YKK450 1-4 280 1500 20.3 92.7 0.86 1.8 0.7 7 104
YKK450 2-4 315 22.7 93.2 106
YKK450 3-4 355 1500 25.5 93.5 0.86 1.8 0.7 7 106
YKK450 4-4 400 28.7 93.6
YKK450 5-4 450 32.2 93.8
YKK450S1-6 185 1000 14.2 92 0.82 1.8 0.7 6 101
YKK450S2-6 200 15.3 92.1
YKK450S3-6 220 16.8 92.3
Type Rated Power Synchronous speed Full Load Breakdown Torque Locked Rotor Torque Locked Rotor Current Sound Power
kW r/min Current Eff. Power Rated Torque Rated Torque Rated Current dB(A)
A % Factor
cosΦ
YKK450 1-6 250 1000 19.1 92.4 0.82 1.8 0.7 6 101
YKK450 2-6 280 21 92.7 0.83 103
YKK450 3-6 315 1000 23.6 92.8 0.83 1.8 0.7 6 103
YKK450 4-6 355 26.5 93.1
YKK450 1-8 185 750 15.2 92.2 0.76 1.8 0.7 6 97
YKK450 2-8 200 16.4 92.4
YKK450 3-8 220 18.1 92.5
YKK500 1-4 500 1500 35.3 94 0.87 1.8 0.7 7 106
YKK500 2-4 560 39.5 94.2 108
YKK500 3-4 630 1500 44.3 94.4 0.87 1.8 0.7 7 108
YKK500 4-4 710 49.6 95
YKK500 5-4 800 55.8 95.1
YKK500 1-6 400 1000 29.8 93.3 0.83 1.8 0.7 6 103
YKK500 2-6 450 33.5 93.5
YKK500 3-6 500 1000 37 93.9 0.83 1.8 0.7 6 106
YKK500 4-6 560 40.9 94.1 0.84 97
YKK500 1-8 250 750 20.2 92.6 0.77 1.8 0.7 6 97
YKK500 2-8 280 22.6 92.7
YKK500 3-8 315 750 25.5 92.8 0.77 1.8 0.7 6 99
YKK500 4-8 355 28.6 93.1
YKK500 5-8 400 31.8 93.2 0.78
YKK500 1-10 185 600 15.9 91.9 0.73 1.8 0.7 5.5 97
YKK500 2-10 200 17.2 92
YKK500 3-10 220 600 18.6 92.1 0.74 1.8 0.7 5.5 97
YKK500 4-10 250 21.2 92.2
YKK500 5-10 280 600 23.6 92.4 0.74 1.8 0.7 5.5 97
YKK500 6-10 315 26.5 92.6 99
YKK500 1-12 185 500 15.9 91.8 0.73 1.8 0.7 5.5 97
YKK500 2-12 200 17.2 91.9
YKK500 3-12 220 18.9 92
YKK560 1-4 900 1500 62 95.2 0.88 1.8 0.7 7 108
YKK560 2-4 1000 68.8 95.3
YKK560 3-4 1120 77 95.4 109
Type Rated Synchronous Full Load Breakdown Torque Locked Rotor Torque Locked Rotor Current Sound Power
power speed Rated Torque Rated Torque Rated Current dB(A)
kW r/min Current Eff. Power
A % Factor
cosΦ
YKK560 1-6 630 1000 45.9 94.4 0.84 1.8 0.7 6 106
YKK560 2-6 710 51.6 94.6
YKK560 3-6 800 58.1 94.7
YKK560 1-8 450 750 35.7 93.4 0.78 1.8 0.7 6 99
YKK560 2-8 500 39 93.8 0.79
YKK560 3-8 560 750 43.6 93.9 0.79 1.8 0.7 6 101
YKK560 4-8 630 46.4 94.4 0.83
YKK560 1-10 355 600 29.4 92.8 0.75 1.8 0.7 6 99
YKK560 2-10 400 33.1 93
YKK560 3-10 450 600 36.2 93.2 0.77 1.8 0.7 6 99
YKK560 4-10 500 40.1 93.4
YKK560 5-10 560 44.3 93.5 0.78 101
YKK560 1-12 250 500 21.5 92 0.73 1.8 0.7 6 99
YKK560 2-12 280 24 92.1
YKK560 3-12 315 500 27 92.3 0.73 1.8 0.7 6 99
YKK560 4-12 355 30.4 92.5
YKK560 5-12 400 34.1 92.7
YKK630 1-4 1250 1500 84.9 95.5 0.89 1.8 0.6 7 109
YKK630 2-4 1400 94.9 95.7
YKK630 3-4 1600 1500 108 95.8 0.89 1.8 0.6 7 109
YKK630 4-4 1800 122 95.9
YKK630 1-6 900 1000 64.4 94.9 0.85 1.8 0.6 6 106
YKK630 2-6 1000 71.4 95.1
YKK630 3-6 1120 1000 79.8 95.3 0.85 1.8 0.6 6 108
YKK630 4-6 1250 88 95.4 0.86
YKK630 1-8 710 750 52.8 94.6 0.82 1.8 0.7 6 101
YKK630 2-8 800 59.5 94.7
YKK630 3-8 900 750 66.8 94.8 0.82 1.8 0.7 6 101
YKK630 4-8 1000 73.2 95 0.83
YKK630 1-10 630 600 49.8 93.7 0.78 1.8 0.7 6 101
YKK630 2-10 710 56 93.9
YKK630 3-10 800 600 61.2 94.3 0.8 1.8 0.7 6 101
YKK630 4-10 900 68.7 94.5
YKK630 1-12 450 500 38.3 92.9 0.73 1.8 0.7 6 99
YKK630 2-12 500 42.4 93.2
YKK630 3-12 560 500 46.7 93.5 0.74 1.8 0.7 6 101
YKK630 4-12 630 52.5 93.7




Remarks:
1. The motors with power 2000kw and above have their auxiliary terminal on the left of the motor
2. For some motor with the rolling bearing, it can be supplied with self-lubricated system.
3. The dimension in bracket is for 2-poles motors, and that with underline for 4-poles motors. If there is only a double digits, the one without bracket is the dimension for the motors beyond 2-poles.
4. For the dimensions in diagonal, the upper one is that of Y and YKS series motors and the below one is YKK series motors.
5. The dimension (229)* is 6KV, (301) is 10KV.
GROUP OF COMPANY SEALOCEAN- we are leading manufacture for electric motor, Our main Motor products can be divided into 8 categories with 50 kinds of specifications as follow: 1) YB2 Series Explosion-proof Three-Phase Asynchronous Induction Motors for... [View More]
Service... [View More]
Name: Manager On Duty
Tel : 15985840856
Fax : +86059260180000
QQ: 2119098020
Skype: miss.rosly
Skype: [email protected]
Skype: edgeyou
E-mail: [email protected]
E-mail: [email protected]
E-mail: [email protected]
E-mail: [email protected]
Add: Hubin West Road, Xiamen City, China.
QQ: 2119098020
skype: miss.rosly
skype: info@sealocean-international.com
skype: edgeyou
email: sealocean@outlook.com
email: info@sealocean-international.com
email: sale@sealocean-international.com
email: tech@sealocean-international.com
facebook: https://www.facebook.com/profile.php?id=100016508982681
twitter: https://twitter.com/Sealcoean
youtube: https://www.youtube.com/channel/UCE7i8aEQ7Pw_x3rCo7O5obw
Linkedin: https://www.linkedin.com/in/эмма-сеалоцеан-82a29b141/
   Google |
Copyright © Group of company "SEALOCEAN" All Rights Reserved   sitemap  UA-101248356-1
