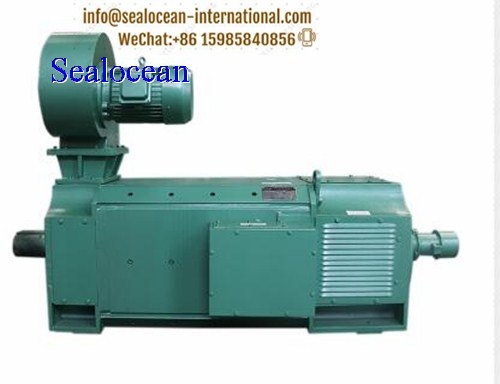

Product name : CHINA FACTORY ZFQZ SERIES FREQUENTLY STARTS / BRAKES DC MOTOR ,CHINA FACTORY DC MOTOR WITH BRAKE
Product No. : 202081293010
←[Previous Product]              [Next Product]→
Details:
1) General Descriptions:

ZFQZ Often starting and braking DC Motor are developed on the basis of Z4 series and ZZJ-800 Series DC motor, The rotating inertia of the motors is 45% and 65% of the motors of Series ZZJ-800 and ZZJ900 respecitively, The motors are suitable for direct and reversal rotation and start and stop in high frequency in a bad working circumstance, The motors are good-overlading, The max. Rotating moment and starting moment are 112% and 117% of the moments of seriess ZZJ800 and ZZJ900 motors respecitively, The weight of the motors is just 65% of the series ZZJ800 motors. The class of the motor power is in accordance with the international standard IEC34-13" Technical Criterions of Auxiliary Machine and Hoisting and Metallurgy"

2)Type Designation:
ZFQZ Series DC Motor

3) Working Conditions:
1, The allowable ambient temperature for the operation of the motors is -30C~+40C and the allowable sea level in not higher than 1000m.
2, The supplying electric source of the motors adopts rectified electric source or DCgenerator electric source, When adopting 3-phase. Fully controllable bridge rectifiedelectric source, the motors can work for a long period without outer smoothing reactor

4) Products performance:
Motor Frame: IEC ZFQZ-250~ZFQZ-450
Output(KW): 37.3kW~600kW
Rated Voltage(V): There are 2 kinds of rated voltage of motors: 220V, 440V. As required, The motors with other voltage level can be produced
Excitation Type: The mode of excitation of motors is separate excitation. The voltage of excitation is 180V or 310V. AS required, The motors with other voltage level can be produced
Rated Speed(rpm): No Speed adjustment is specified for this series motors. Any special requirements in this field by customers can be discussed.
Insulation Class: CLASS F
Protection Class: IP21s, IP23S and IP44 is adopted for the mtoors protections of this series
Mounting Type: IMB3, IM35
Duty: Continuous working system(S1) is applied
Methods of Cooling: IC06, IC17, IC37 and ICW37A86, Other types of protection and cooling required by customers can be negotiated.
Modes of cooling for all the motors are separate cooling, Force ventilated, Cooling by frame radially mounted, Spearately powered Ventilating fan, And attached with an air filter, Modes of cooling for motors may be made into three types, Namely IC06, IC17, IC37
Applied for: flying shear,roller bed, strip mill

(Table 2)

Protection Level Cooling Mode
Radial Ride Type Air Blower Cooling IP21S IC06
Single-duct Ventilation IP23S IC17
Double-duct Ventilation IP44 IC37
Air/water Cooler IP44 ICW86

 (Table 3)

Baseplate No. Ventilation Quantity(m3/hr) Static Pressure(Pa) Motor Power(kw) Weight(kg)
ZFQZ-250 3000 1400 3 70
ZFQZ-280 4000 1600 4 80
ZFQZ-315 4860 1600 5.5 90
ZFQZ-355 5200 1600 5.5 120
ZFQZ-400 7200 1800 5.5 180
ZFQZ-450 9000 1800 7.5 250

(Table 4)

Cooler Type Air Blower Motor Cooling Water Discharge(m3/h) Weight(kg)
KSL-250 4.0 kw 11 400
KSL-280 5.5 kw 12 500
KSL-315 5.5 kw 13 600
KSL-355 7.5 kw 15 750
KSL-400 7.5 kw 18 850
KSL-450 11 kw 19.5 950

Technical Data Table(A)
(Specifications corresponding to Series ZZJ-800 and ZZJ-900)

Type Rated
Power
Rated
Voltage
Rated
Rotating
Speed
Low-intensity
Magnetic
Rotating
Speed
Rated
Current
Rated
Rotating
Moment
Max. Running
Rotating
Moment
Starting
Rotating
Moment
Excitation
Power
Rotating
Inertia
Weight
kW V r/min A kNm kW kgm2 kg
ZFQZ-250-081B 37.3 220 575 1275 220 0.62 1.86 2.17 2.1 0.95 710
440 575 1150 112
ZFQZ-250-21B 52 220 550 1650 288 0.91 2.73 3.19 2.75 1.4 900
440 550 1100 144
ZFQZ-280-12B 75 220 515 1300 415 1.39 4.17 4.87 3.1 2.5 1170
ZFQZ-280-11B 75 440 515 1050 202





ZFQZ-315-082 112 220 500 1250 614 2.14 6.42 7.49 4.5 4.1 1720
ZFQZ-315-081 112 440 500 1000 300





ZFQZ-315-22 150 220 480 1200 795 2.99 8.97 10.5 4.35 6 1960
ZFQZ-315-21 150 440 480 960 393





ZFQZ-355-092 186 220 435 1100 982 4.09 12.3 14.3 4.2 9.2 2520
ZFQZ-355-091 186 440 435 870 488





ZFQZ-355-42 280 440 390 780 720 6.86 20.6 24.0 6.5 15 3720

Technical Data Table(B)
(Specifications of Partial Produces Motors)

Type Rated
Power
Rated
Voltage
Rated
Rotating
Speed
Rated
Current
Rated
Rotating
Moment
Max. Running
Rotating
Moment
Starting
Rotating
Moment
Excitation
Power
kW V r/min A kNm kW
ZFQZ-450-42 600 725 600 880 9.55 28.7 33.4 7.5
ZFQZ-450-42 500 660 500 810 9.55 28.7 33.4 7.5
ZFQZ-450-31 420 660 430 700 9.33 28 32.6 7.1
ZFQZ-450-31 220 370 180 730 11.6 35 40 7.1
ZFQZ-400-42 418 725 530 635 7.53 22.6 26.4 7.1
ZFQZ-400-42 400 440 410 1020 9.32 28 32.6 7.1
ZFQZ-400-42 205 420 280 570 6.99 21 24.5 7.1
ZFQZ-400-42 500 660 708 810 6.74 20.2 23.6 7.1
ZFQZ-400-32 440 660 600 725 7 21 22.5 6.4
ZFQZ-355-42 418 725 600 630 6.65 20 23.3 6.5
ZFQZ-355-42 355 440 500 895 6.78 20.3 23.7 6.5
ZFQZ-355-42 361 600 550 665 6.27 18.8 22 6.5
ZFQZ-355-32 450 725 750 670 5.73 17.2 20 6
ZFQZ-355-32 315 440 500 800 6.02 18.1 21 6
ZFQZ-355-22 450 660 900 735 4.78 14.3 16.7 5.6
ZFQZ-355-22 370 440 650 930 5.44 16.3 19 5.6
ZFQZ-355-12 315 660 880 510 3.42 10.3 12 4.7
ZFQZ-315-42 315 600 800 570 3.76 11.3 13.2 5.2
ZFQZ-315-42 315 440 750 780 4 12 13.5 5.2
ZFQZ-315-42 284 400 680 785 4 12 13.5 5.2
ZFQZ-315-32 280 660 750 465 3.56 10.7 12.5 4.6
ZFQZ-315-32 320 440 900 785 3.4 10.2 11.9 4.6
ZFQZ-315-22 230 220 705 1175 3.12 9.35 11 4.3
ZFQZ-315-21 150 660 480 260 2.98 8.95 10.4 4.35
ZFQZ-315-12 160 440 600 410 2.55 7.65 8.93 3.85
ZFQZ-280-32B 170 440 900 430 1.8 5.41 6.31 3
ZFQZ-250-31B 92 400 880 260 1 3 3.5 2.85

Note: The specification corresponding to Series ZZJ-800 and Series ZZJ-900 and the specifications of partial produced motors are listed in Technical Data Table(A) and Technical Date Table(B) respectively all these specifications are for design and type choice only if the required specification of the motors are not in accordance with those in the technical tables or some special requirements are offered, please contact us. After confirmation, the technical agreement can be made.
